NVR vs DVR

Last updated: July 2026  |  Written by V-Tech Security Team, Bangalore

If you've started researching CCTV systems, you've likely run into two confusing acronyms: NVR and DVR. Dealers throw these terms around assuming you already know the difference, and online listings rarely explain it clearly. This guide breaks it down in plain language, using real installation scenarios from homes and shops across Bangalore.

If you haven't yet, we recommend first reading our Complete Guide to CCTV Cameras, which covers camera types, resolution, and night vision basics that make this comparison easier to follow.

1. The Basics: What Each Recorder Does

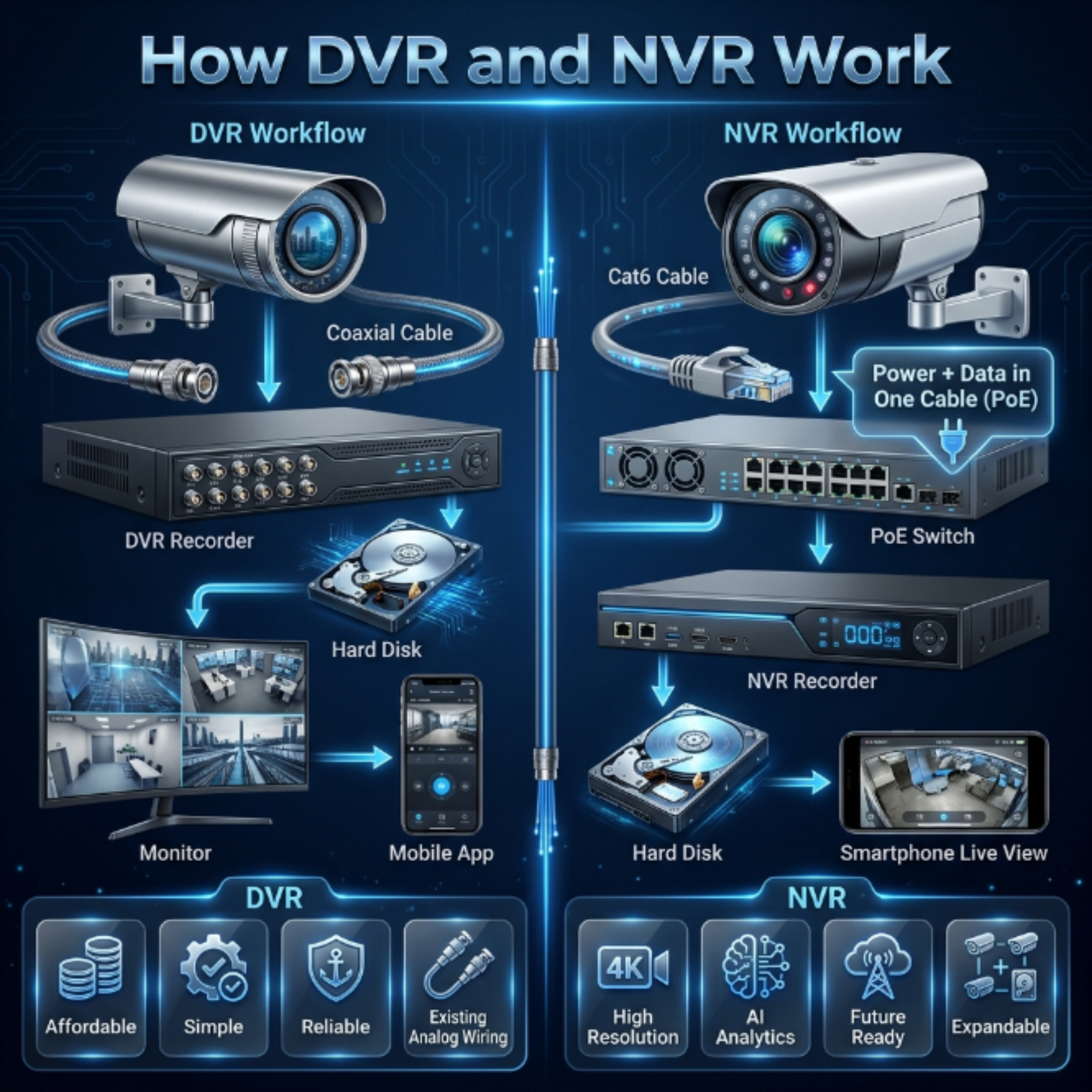

Both NVR and DVR exist to do the same job: receive video from your cameras, compress it, write it to a hard disk, and let you play it back later or view it live on a mobile app. Neither recorder is a camera itself; think of them as the "brain" of your surveillance system, while the cameras are the "eyes."

The difference lies entirely in what kind of camera signal each recorder can accept. This single distinction determines your cabling, your camera options, your image quality ceiling, and even your future upgrade path.

2. How a DVR Works

A DVR (Digital Video Recorder) is built to work exclusively with analog cameras, sometimes called HD-CVI, HD-TVI, or AHD cameras depending on the brand. These cameras send a continuous analog video signal down a coaxial cable to the DVR. The DVR then converts this analog signal into a digital format, compresses it, and writes it to the hard disk.

Because the conversion happens at the recorder rather than at the camera, DVR-based cameras tend to be simpler and cheaper to manufacture, which is one reason analog systems remain the most budget-friendly option for homes and small shops.

3. How an NVR Works

An NVR (Network Video Recorder) is built to work with IP (Internet Protocol) cameras. Unlike analog cameras, IP cameras convert video into digital data at the camera itself, then send it over a network cable (Cat6) or Wi-Fi directly to the NVR. Because the video is already digital when it leaves the camera, IP systems generally retain more detail and support advanced features like human detection, face recognition, and number-plate reading directly on the camera's processor.

Many NVR systems also support PoE (Power over Ethernet), meaning a single network cable can carry both power and video data to each camera, simplifying cabling considerably on larger properties.

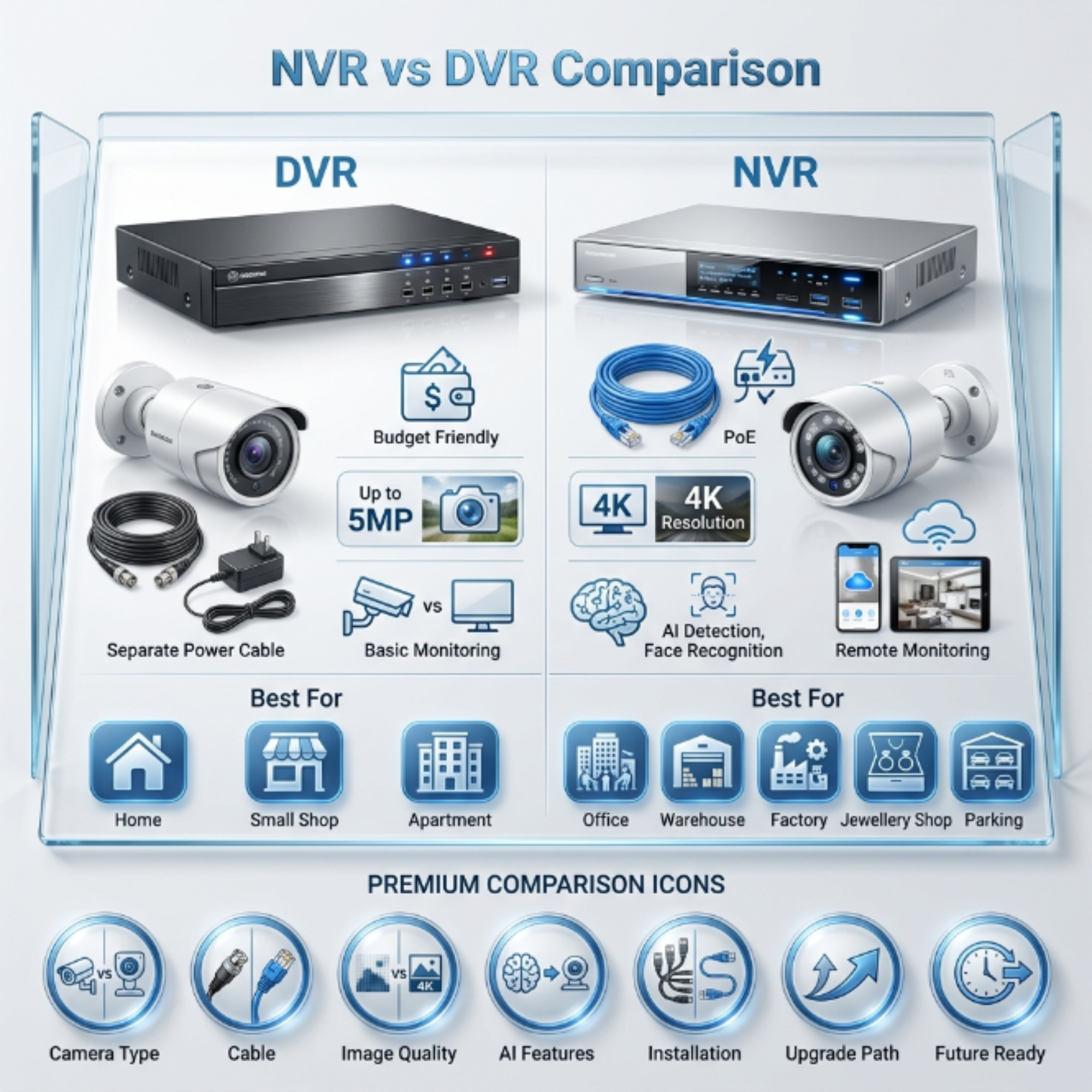

4. Side-by-Side Comparison

Factor	DVR (Analog)	NVR (IP)
Camera type supported	Analog / HD-CVI / HD-TVI / AHD	IP cameras
Cable type	Coaxial + separate power cable	Cat6 network cable (often PoE) or Wi-Fi
Typical resolution ceiling	Up to 5MP on most modern analog systems	Up to 4K (8MP) and beyond
AI features	Limited or none	Human/vehicle detection, ANPR, face recognition
Typical cost	Lower upfront cost	Higher upfront cost
Best suited for	Homes, small shops, budget setups	Offices, jewellery shops, warehouses, large properties

5. Image Quality Differences

Modern analog cameras using HD-CVI or HD-TVI technology have closed much of the quality gap with IP cameras, and a 5MP analog camera today looks considerably better than the analog cameras of a decade ago. Still, IP cameras generally hold an edge in fine detail, dynamic range in mixed lighting, and colour accuracy, since the sensor and processing chip sit right at the camera rather than losing any signal quality over a long coaxial run.

For most homes, this difference is barely noticeable in daily use. For jewellery showrooms or businesses that need to zoom into footage for facial detail or licence plates, the difference becomes meaningful.

6. Cabling and Installation Differences

DVR systems require two separate runs to each camera: a coaxial cable for video and a power cable, unless you use a combined cable, which is common in Indian installations. NVR systems using PoE only need a single Cat6 cable per camera, since power and data travel together, which can meaningfully reduce cabling work and cost on larger properties with many cameras.

If your property already has old analog wiring installed by a previous vendor, sticking with a DVR-based upgrade is usually more practical than ripping out all the cabling to switch to an IP system. We cover this scenario in detail in our guide on upgrading analog CCTV to IP.

7. Cost Comparison

As a general rule, a DVR-based system costs less than an equivalent NVR-based system for the same camera count, mainly because analog cameras and DVR units are cheaper to manufacture, and coaxial cable is less expensive than Cat6. However, if your property needs many cameras spread over a large area, the PoE cabling savings on an NVR system can partially offset the higher per-camera cost. A proper cost comparison always requires a site survey rather than a generic online price list, since cabling distance affects the final number more than the recorder choice itself.

8. Understanding Channel Count

Both NVRs and DVRs are sold by channel count, 4, 8, 16, or 32 channels, referring to the maximum number of cameras the unit can support. A common mistake is buying a recorder that exactly matches your current camera count. If you plan to add cameras later, such as after expanding your shop or completing another floor of your house, buy a recorder with at least 2 to 4 extra channels so you don't need to replace the entire unit later.

9. Which One Should You Choose?

• Choose a DVR (analog) if: You're on a tighter budget, protecting a home or small shop, don't need advanced AI features, or already have analog cabling in place.
• Choose an NVR (IP) if: You run a jewellery shop, office, warehouse, or any property where image detail and AI-based alerts (human detection, ANPR) genuinely matter, or you're wiring a new property from scratch and want the most future-proof option.

10. Upgrading from DVR to NVR Later

If you start with a DVR-based analog system, you are not locked in forever. Many properties upgrade to IP cameras and an NVR years later, when budgets allow or when AI features become a priority. In most cases, this means running new Cat6 cabling alongside or in place of the old coaxial runs, since analog cameras cannot be plugged into an NVR. Planning conduit routes generously during your first installation, even if you start with a DVR, makes a future NVR upgrade far easier and cheaper.

11. Common Mistakes Buyers Make

• Buying an NVR and then discovering their existing cameras are analog and incompatible.
• Choosing a recorder with exactly the number of channels needed today, with no room to expand.
• Assuming NVR is "always better" without checking whether the extra cost matches their actual security needs.
• Not asking whether the recorder supports the hard disk size they plan to install.
